Videoproiector JVC DLA-RS2100 Reference Series Home Cinema 8K e-Shift, 4K Nativ
 |
|
World’s first home projector capable of inputting 8K60p/4K120p signals
These projectors adopt LSI's developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.
Essential all-glass lens to depict all the data in the 8K/4K images
The high-end DLA-NZ9 (RS4100) is equipped with an 18-element, 16-group all-glass lens featuring a full aluminium lens barrel*1. To project highresolution 8K images to every corner of the screen, the projector incorporates five ED lenses calibrated for differences in the R/G/B refractive index to reduce chromatic aberration and colour fringing when lens shift kicks in to deliver precise reproduction of 4K- or 8K-resolution*2 projection.
*1: 65 mm diameter, 17-element, 15-group all glass lens is featured on the DLA-NZ8 (RS3100), NZ7 (RS2100) and NP5 (RS1100) models.
*2: Resolution varies depending on the model.
HDR10+ Support allows a choice for two dynamic tone mappings
When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.
JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer's intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.
4K120p input ideal for Low Latency Mode
Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.
Reliability-proved BLU-Escent Laser Diode for exceptional brightness and longevity
The light source for these projectors is the latest blue laser diode BLU-Escent, which is featured in JVC projectors. BLUEscent technology has been adopted for home theatre projectors to achieve exceptional brightness and longevity of 20,000 hours*. Laser diode allows dynamic control of brightness to reproduce images that are closer to human perception. Combining the latest BLU-Escent package with the D-ILA device achieves detailed, smooth, powerful video expression.
*In theory, this amounts to 20 years or more while watching a 2.5-hour movie every day.
-
D-ILA Technology
Yes
Chip Type
0.69-inch 4K D-ILA device
Native Resolution
4096 x 2160
Number Of Chips
3
8K/e-shift
Yes
Display Resolution
8192 x 4320
Light Source
Laser
Yes
Type
BLU-Escent Laser Diode
Life Time (Standard Mode)
20000 hours
Brightness
2200 lm
Dynamic Contrast
∞ : 1
Native Contrast
40000 : 1
Dynamic Light Power control
Yes
Modes
Mode 1 (gentle), Mode 2 (strong), Off
Manual Aperture
Yes
Range
-15 (stops down) to 0 (opens up)
100% REC 709
Yes
Color Bit Depth
12 bit
ISFccc Certification
Yes
HDR
HDR10
Yes
HDR10+
Yes
Frame Adapt HDR
Yes
Theatre Optimizer
Yes
HLG
Yes
Auto Tone Mapping
Yes
Mastering Info Display
Yes
Info data
MaxCLL and MaxFALL mastering data
HDR Picture Modes
BT.709 / BT.2020 / DCI / HDR
FLIMMAKER MODE
Yes
Lens
Zoom
2 x
Throw Ratio
1.43-2.92:1
Diameter
65 mm
Material
All-glass
Build
17-element, 15-group in full aluminium lens barrel.
Lens Shift
Yes
Range Horizontal
± 34 %
Range Vertical
± 80 %
Motorized Zoom
Yes
Motorized Shift
Yes
Motorized Focus
Yes
Projection Display size (diagonal)
60 - 200 inch
Memory Function
Yes
Number of user presets
10
Lens Cover
Yes
HDMI
Number of connections
2
Data Rate
48 Gbps
HDCP Version
2.3
8K60P signal input
Yes
4K120p signal input
Yes
4K60P signal input
Yes
Video Signal range
480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
PC Signal range
VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
Input Level Adjustment
Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range
Auto/ YCbCr4444 / YCbCr422 / RGB
EDID Modes
A and B (older hardware may need to use B settings)

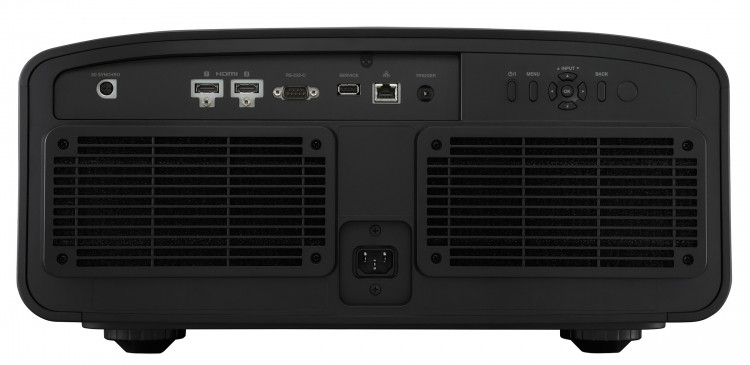

Connections
Trigger out
Yes
Connector
Mini-Jack (3,5mm)
Power
DC 12V / 100mA
3D Synchro
Yes
Connector
Mini DIN 3-pin
LAN
Yes
Connector
RJ45
RS-232
Yes
Connector
D-sub 9-pin
Service
Yes
Connector
USB (Type A) for firmware update.
3D
3D Capability
Yes
3D Versions
Frame Packing, Side-by-Side, Top & Bottom
Frame Packing Resolutions
720p 60/50, 1080p 24
Side-by-Side Resolutions
720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & Bottom Resolution
720p 60/50, 1080p/24
3D Emitter (Optional)
Yes, PK-EM2
3D Glasses (Optional)
Yes, PK-AG3
Picture Settings
Picture Modes
Natural, Cinema, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
Color Temperatures
5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth
12 bit
Gamma Adjust
HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Pana_PQ, 3 Custom modes
Color Management
6-Axis adjustable CMS
MPC
Yes
Low Latency Mode
Yes
Clear Motion Drive
Yes
Motion Enhance
Yes
Auto Calibration
Yes
Optional Probe needed
Yes
Installation Mode
Yes
Number of presets
10
Included settings
Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect
Anamorphic Modes
4 Modes (A, B, C, D)
Control4 SDDP
Yes
Power & Environment
Power Requirement
AC100-240V, 50/60Hz
Projector in Use
420W
Standby
Eco Mode 0.20W
Network Standby
1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C)
Switchover time
Approx. 15 min. (To standby or networked standby; default)
Fan Noise
24 dB
Eco Mode
Yes
Standby Timer
Yes
Operating Temperature
5°C to 35°C
Operating Humidity
20% to 80%
Installation Angle
Horizontal +/- 5 degree / Vertical +/- 10 degree
Installation Height
Below 2,000 m
In the box
Remote Control
Yes, RM-MH27
User Manual
Yes
Power Cord
Yes
Batteries
Yes, 2 x AAA-size batteries
Dimensions & Weight
Product Dimensions (WxHxD)
500 x 234 x 505 (mm)
Product Weight
22.5 Kg
Package Dimensions (WxHxD)
640 x 415 x 665 (mm)
Package Weight
27.9 Kg
General Editing Note
General Note:
Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
-
Numar articol DLARS2100
